COMP1710 : Laboratory 2

A small Web Site

1. Objectives

In this lab, you will create a set of web pages with different features in them. These will be linked together in such a way that from the user view point there will be a home page and a set of pages that one should be able to access one after the other.

2. Tasks

2.0 Task 0

Access to http://www.w3schools.com/html/html_examples.asp

And or any of the proposed in http://www.vrarchitect.net/links/intern_html.en.html

Check that you know everything about HTML :-)

Create a subdirectory LAB2_Uxxxxxxx

• in that directory you will create two subdirectories : story1 and story 2
• in LAB2_Uxxxxxxx, you will put the html files index.html and demo.html
• in LAB2_Uxxxxxxx/story1, you will put files text1.html and text2.html
• in LAB2_Uxxxxxxx/story2, you will put files text1.html and text2.html

Remember to always give a title to any web page you are writing (element "title", within the "head" element)

2.1 Task1 : Creation of a web page

Use your favourite text editor. Create a new file in which you will copy the template proposed in the lecture.  Save that file in the LAB2_Uxxxxxxx directory, with the name demo.html.

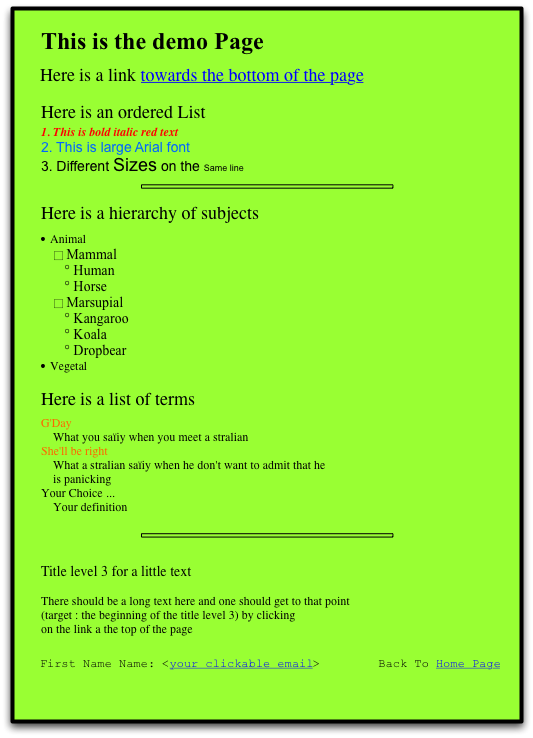

Using the following tags Hn, P, UL, LI, FONT, OL, DL, DT, DD, HR, PRE, BR, A, and various attributes (bgcolor for the tag BODY etc) you will create a page that looks like the following model. Note that there are 3 links in that page. One is towards your lab home page that will be created in the next task. One is towards the last part of the page (If you want to see the effect, you may have to make sure to add enough content to the page to make it long enough, for instance in the definitions part)

2.2 Task2 : Creation of a web site

You will create at least 5 other HTML pages as stated in Task 0. These pages will have a default background, a title in the heading and a least a title in the body and some text. Please use your imagination

All the pages in the lab work should have at the bottom your first name, surname, a mail link to your ANU email and a link to the Home page (index.html).

All links should be relative links.

In addition to those common links, the Home page should provide a link to every pages in your work.

Every 'text' html page should point to the following one. Note that story1/text1.html should point towards a paragraph at the end of story2/text1.html.

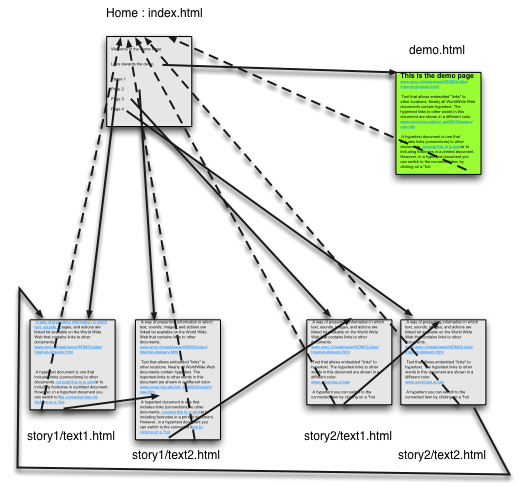

The overall hierarchy produced is presented below :

2B Tasks for experienced web heads

If you have created web sites before, please discuss with your tutor what you will do for this lab to get your 3 marks, so you can also learn something.

3. Conclusion

After this lab, your are now able to produce a basic web site !

4. Extra work

You may try to includes images (tag IMG) in your work, but be careful of the size of the images : the complete site should not be more than 200 kB (you can do a Get Info on the folder to find out the overall size)

5. Summary to get 3 marks for this lab session

• Create a directory which name is LABn_Uxxxxxxx where n is the number of the Lab and xxxxxxx is your student id.
• Within that directory, put the deliverables described for this lab (see above)
• Zip that directory and its contents. ( If everything is working well, the name of the zip file should be LABn_Uxxxxxxx.zip where xxxxxxx is ... )
  Remember that because of a bug with the remote server, you will have to drag and drop the folder on the Desktop before getting an archives for it.
• Send an email to both Pascal.Vuylsteker@anu.edu.au AND to your tutor in the same mail : address separated by coma or use the CC field, not the BCC (See here if you still don't know the name of your tutor) such that
  • The "Subject" of  the email starts with "COMP1710_LABn_Uxxxxxxx" (without the double quotes, all uppercase, with underscores, etc !)
  • The content of the mail is
    • Some polite greetings, like "G'Day Mate, here is my first lab submission. I'm sure She'll be Right !" or anything more classical.
    • The previously created zip file

Notes

• Please, send only one mail if the lecturer is also the tutor !!!
• Make sure that your 'From' address is either the official ANU address (uxxxxxxx@anu.edu.au or FirstName.Surname@anu.edu.au) or starts with FirstName.Surname@
• Send an email to yourself first if you want to check that everything is all right.
  Always Cc the email to yourself and check that you are able to properly unzip the attached file.
• Marking scheme
  • If you manage to send an E-mail properly (Subject, greeting, zip file attached etc), and if the zip contains something related to the present lab, you get one mark.
  • If you do much of the work and send it properly, you get 2 marks.
  • If you do most everything and send it properly, you'll get the 3 marks for this lab.
  • To be valid, the submission has to be send the very latest on Sunday following your lab at 23:55. But you should never wait till the last minute, because if you miss that deadline, you are not marked.
